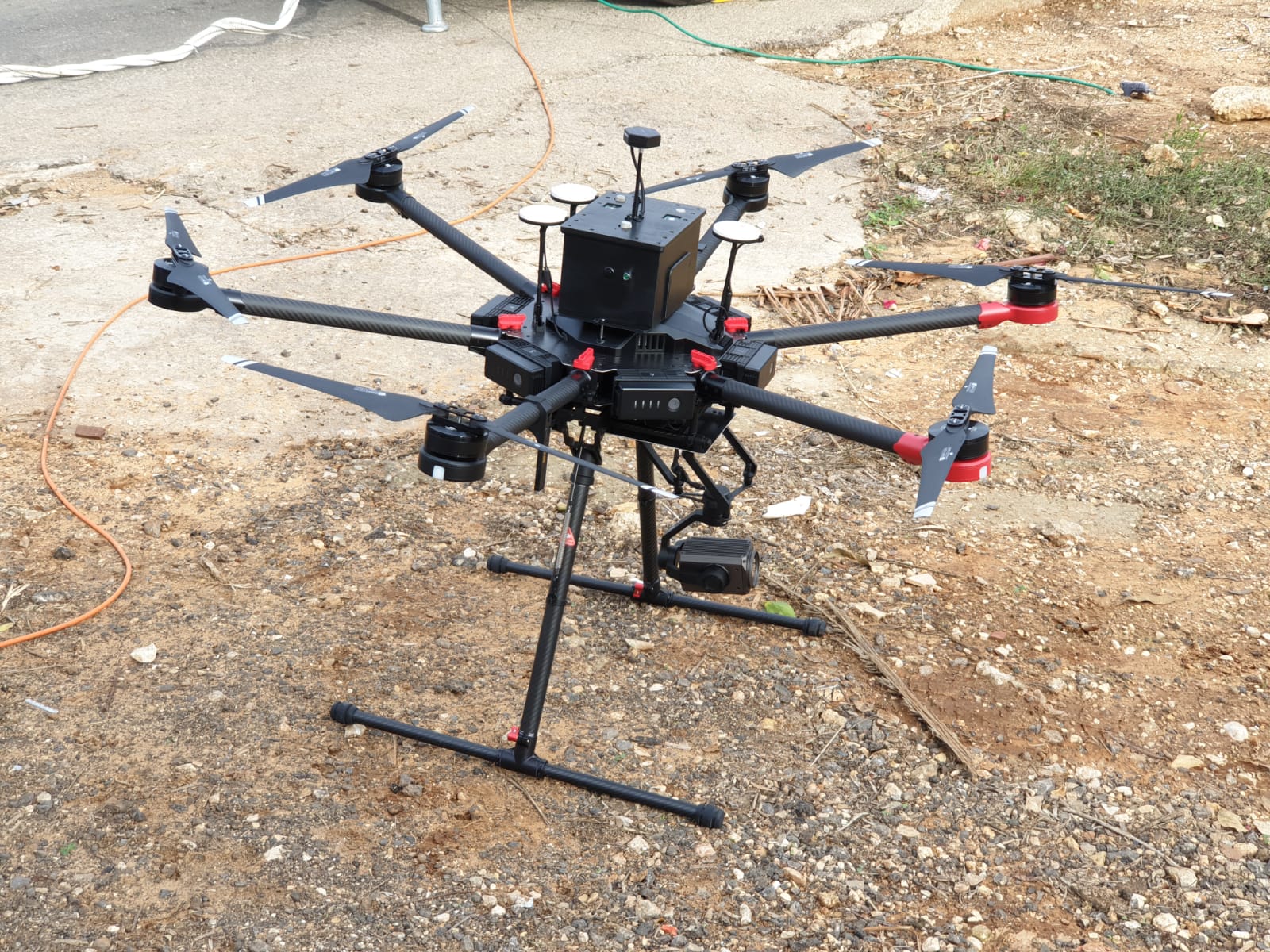

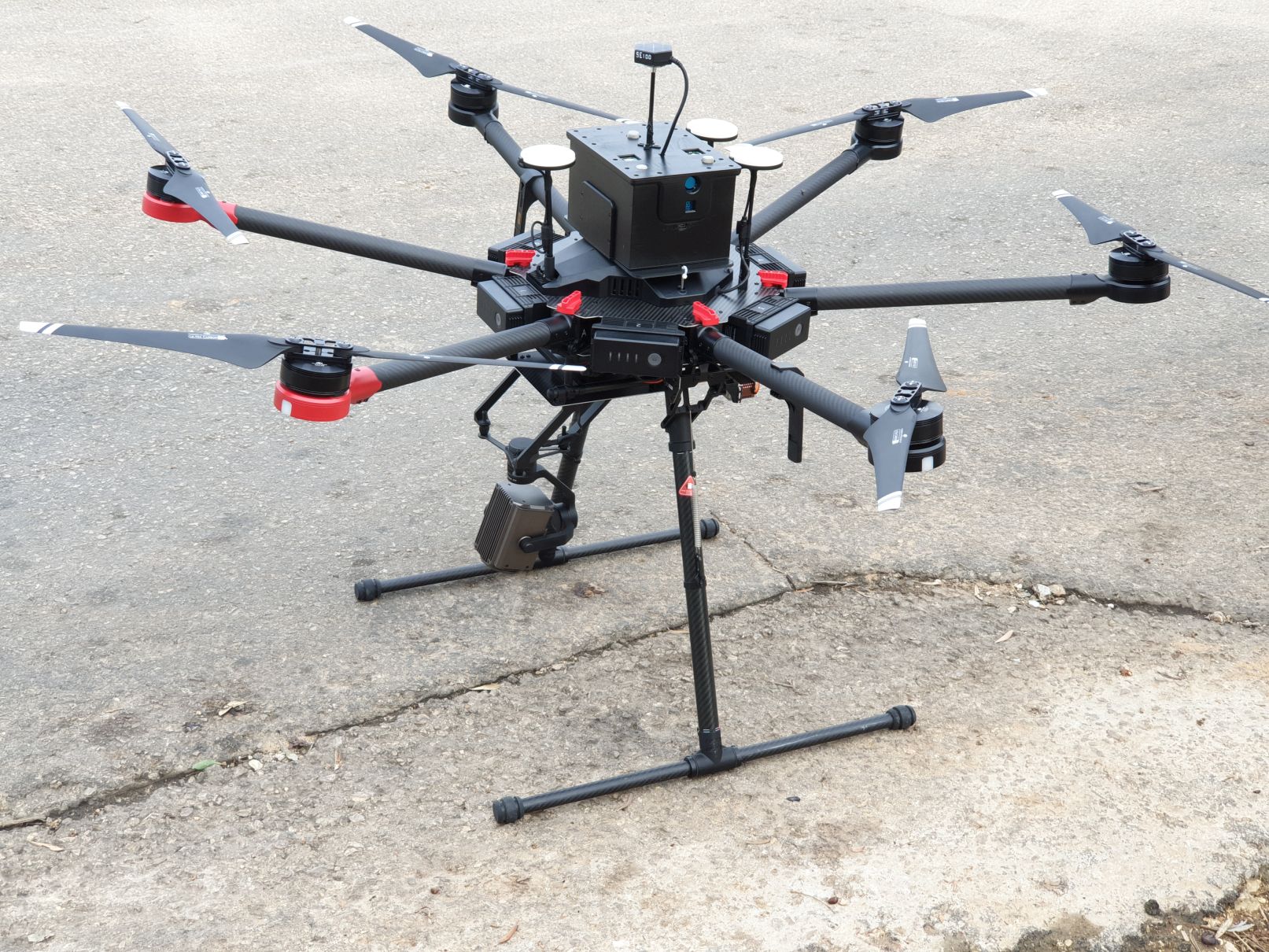

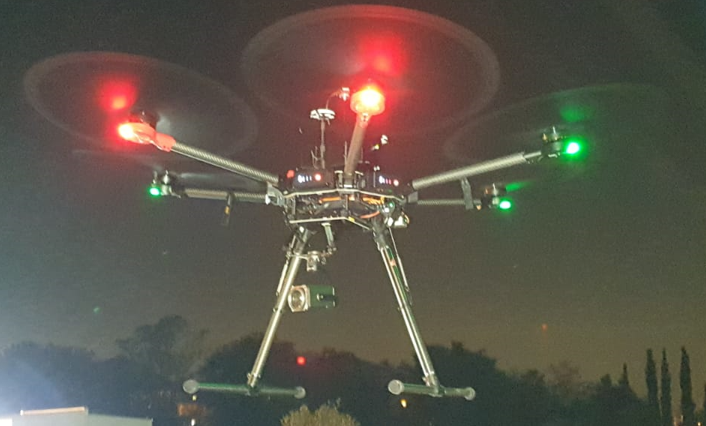

Sniffly - flying laboratory for air quality monitoring
Remote monitoring of air composition with intelligent drones
- Provide a stable, high precision X-Y-Z platform, for sample collection for up to 500 meters above ground level.
- Provide adequate flight time for various integrated and time series data collection missions
- stay safely away from hazardous sources while acquiring environmental samples.
- Provide real-time data links and imaging.
- Develop autonomous methods for sample collection.
Controller

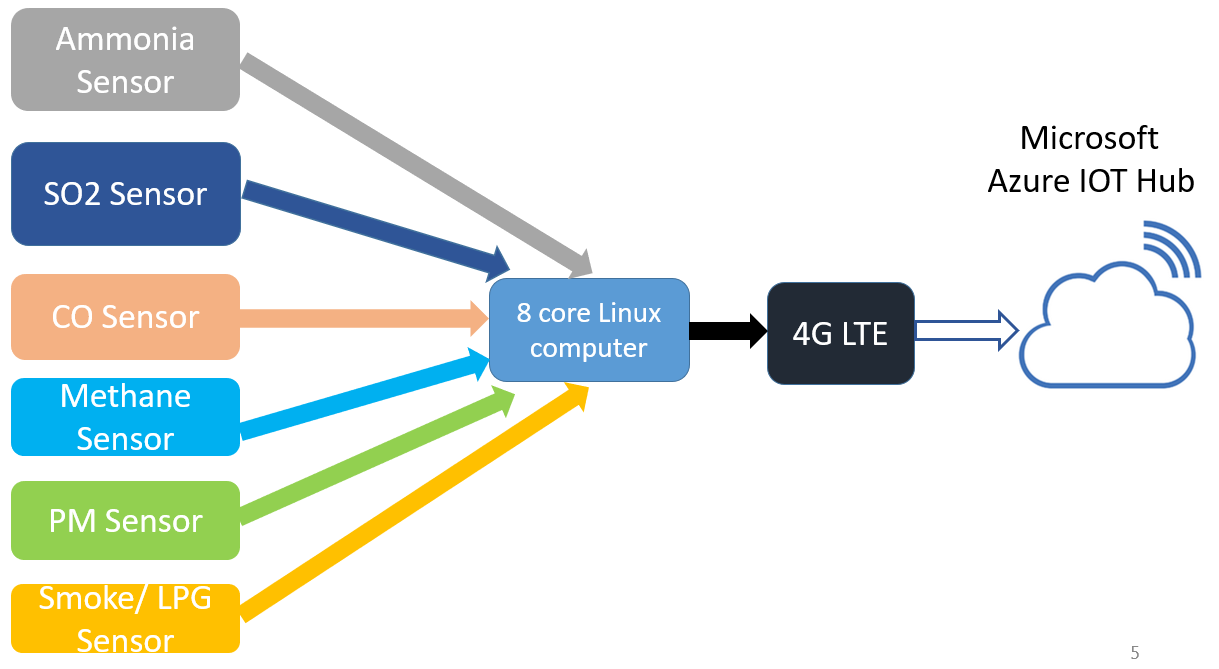

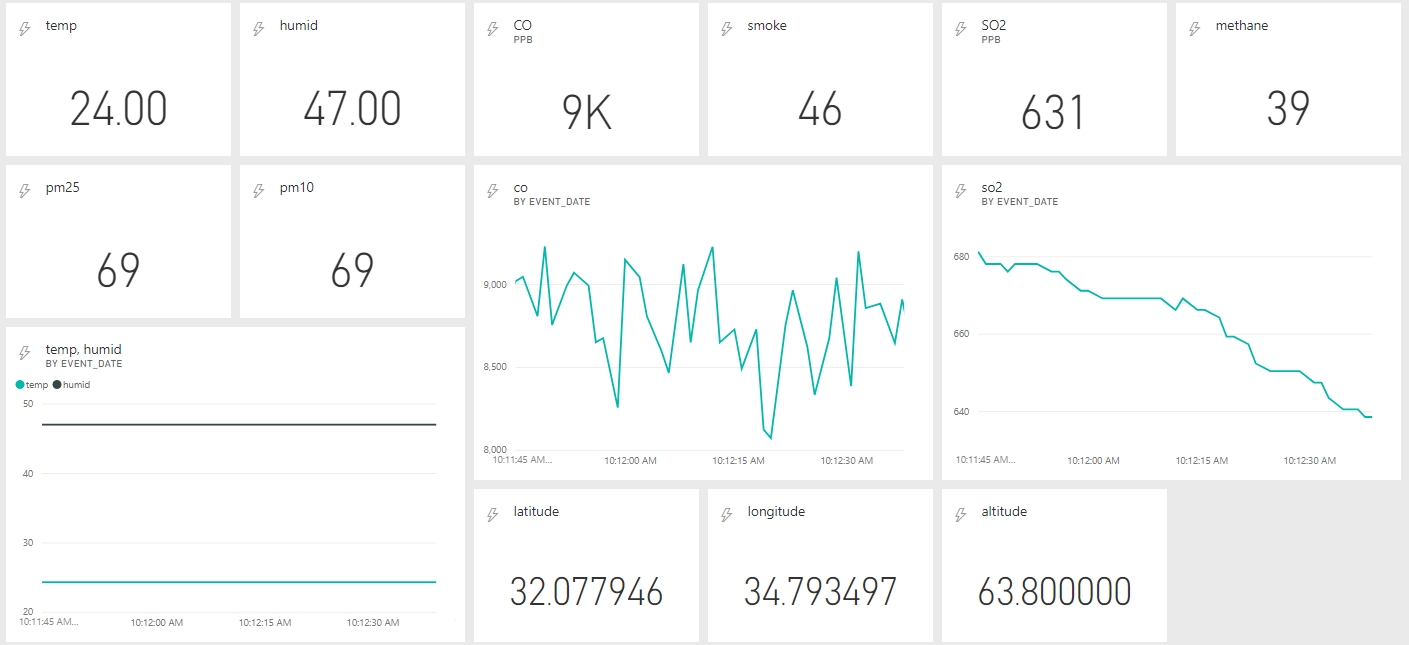

Real-time logging of environmental & air quality sensors:
- Compatible with 50 different sensors
- Wide area air quality surveys
- Checking pollution "hotspots"
- Personal exposure monitoring
- Short term fixed monitoring network
- Independent Cell transmission channel
- Live GPS & Glonass receiver, allows mapping synchronized with sensor data
- Reception of up to 3 GNSS (GPS, Galileo, GLONASS, BeiDou)

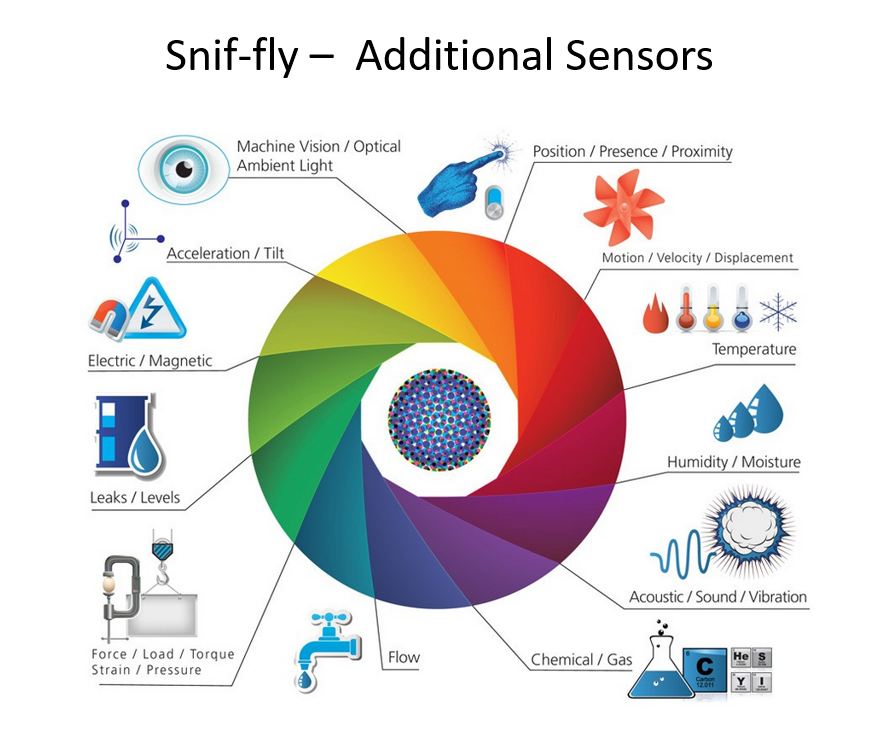

SENSORS
Ammonia Sensor 0-1000ppm
Ozone Sensor 0-10ppm
Ozone Sensor 0-0.5ppm
Ozone Sensor 0-0.15ppm
Particulate Matter Sensor PM10 / PM2.5
Perchloroethylene Sensor 0-200ppm
Chlorine Dioxide Sensor 0-2000ppm
Sulfur Dioxide Sensor 0-100ppm
Sulfur Dioxide Sensor 0-10ppm
VOC Sensor 0-500ppm (Volatile organic compounds)
Positive and negative ion counter
Carbon Dioxide Sensor 0-2000ppm
Carbon Monoxide Sensor 0-100ppm
Chlorine Sensor 0-10ppm
Formaldehyde Sensor 0-10ppm
Hydrogen Sensor 0-5000ppm
Hydrogen Sulfide Sensor 0-100ppm
Methane Sensor 0-10000ppm
Nitrogen Dioxide Sensor 0-1ppm
Air Pollution Dangers
- High air pollution levels can cause immediate health problems including: Aggravated cardiovascular and respiratory illness
- Added stress to heart and lungs, which must work harder to supply the body with oxygen
- Damaged cells in the respiratory system
- Long-term exposure to polluted air can have permanent health effects such as: Accelerated aging of the lungs
- Loss of lung capacity and decreased lung function
- Development of diseases such as asthma, bronchitis, emphysema, and possibly cancer
- Shortened life span
Communications
- 1 X RS232 port (Modbus RTU, any customizable protocol)
- 1 X RS485 port, 10Mbps (any customizable protocol)
- TCP/IP (10BaseT/100BaseTX Ethernet PHY embedded) – supports Modbus/TCP, UDP, HTTP stacks
- Cellular: 3G HSPA/GSM module with global coverage - 800/850/900/1900/2100MHz
- Wi-Fi 2.4 GHz, support WPA/WPA2 with 802.11 b/g/n, up to 500m coverage (with external antenna)
On Board Memory
- 32MB high speed memory
- Micro SD Card slot, supporting up to 64GB of memory for autonomous logging capabilities even when server is down.
IMU
- Ultra-compact high-performance eCompass module: 3D accelerometer and 3D magnetometer
- ±16 gauss magnetic full scale
- 16-bit data output
- Interrupt input to wake controller up
- 3-Axis Digital Angular Rate Gyroscope
- yaw, pitch, and roll angular rate gyroscope
- Anti-vandal mechanism auto signals controller with alarms/ fast cloud integration
GPS
- Reception of up to 3 GNSS (GPS, Galileo, GLONASS, BeiDou)
- 2.5 m accuracy
- External antenna with automatic antenna detection circuitry
- Easy interfacing between several AGRO cards on the Systems map
